S15604 Series
S15604  Series
Close

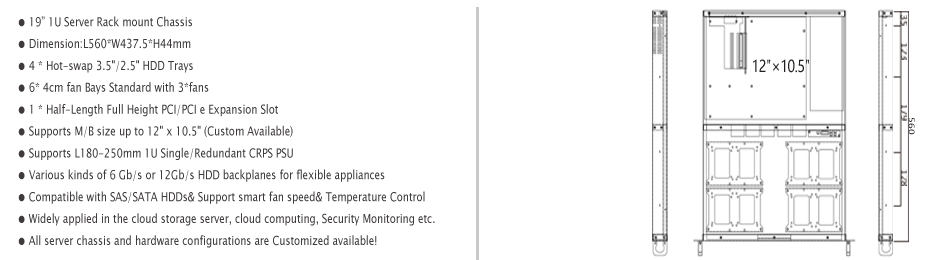

Features





    Form Factor

    1U Rackmount Chassis

    M/B Form Factor

    Motherboard MAX 12"x10.5".

    Customer Specified (OEM Available)

    Dimensions (Dx Wx H)

    560 x 437.5 x 44(mm)
    22" x 17.2" x 1.73"

    Material

    High quality Anti-finger 1.0 mm SGCC& Super ABS ROSHs

    Front Control

    1x Power On/Off, 1x System Reset, 1 x Unit Identification (UID) button,2 x USB 2.0

    Indicators

    1x Power Status, 2x LAN Activity, 1x HDD Status,1x Fan Fail/System Over Heat LED

    1 x Unit Identification (UID) LED

    Hotswap Backplane

    1)6GB SATA Hot-swap Backplane (Default)

    2)6GB Mini SAS Hot-swap Backplane

    3)12GB Mini SAS HD SGPIO Hot-swap Backplane

    Drive Bays

    External 3.5"/ 2.5"4
    Internal 2.5"

    Slim ODD 2.5"

    Cooling Fans

    Default 3x 40mm(T=28mm, up to 48mm), PWM

    6x 40mm Fan Bays

    Expansion Slots

    1x Full Height

    PSU Form Factor

    1U single powersupply.L180~250mm

    Color

    Front Panel Coated Black (Others customized)

    Application

    Cloud Storage, Cloud Computer, Huge Storage,Datacenters, NVR, Security Monitor Industry etc.

    Net Weight

    4.15Kg

    Gross Weight

    5.2Kgs

    Unit Carton Size

    17x70x59 cm

    Customized

    Available

    Order Code

    M/B

    HDD Backplane

    PSU

    Rear Window

    Slide Rail

    CS15604A6

    12"x10.5"

    4-Bay 2.5"/3.5", 6GB SATA

    Option 400W/500 1U single

    1-Slot,HF

    Option

    CS15604M6

    12"x10.5"

    4-Bay 2.5"/3.5", 6GB mini SAS

    Option 400W/500 1U single

    1-Slot,HF

    Option

    CS15604G12

    12"x10.5"

    4-Bay 2.5"/3.5", 12GB mini SAS HD SGPIO

    Option 400W/500 1U single

    1-Slot,HF

    Option

    CS16504A6

    12"x13"

    4-Bay 2.5"/3.5", 6GB SATA

    Option 500 1U single

    1-Slot,HF

    Option

    CS16504M6

    12"x13"

    4-Bay 2.5"/3.5", 6GB mini SAS

    Option 500 1U single

    1-Slot,HF

    Option

    CS16504G12

    12"x13"

    4-Bay 2.5"/3.5", 12GB mini SAS HD SGPIO

    Option 500 1U single

    1-Slot,HF

    Option

    CT16510G12

    12"x13"

    10-Bay 2.5", 12GB mini SAS HD SGPIO

    Option 500 1U single

    1-Slot,HF

    Option

    If you want to know more about the price and technical support, please contact us.

    *

    *

    *
