Form Factor

TS3480 OEM

Dimensions (mm)

L480*W437.5*H132mm

Material

Heavy-SGCC 1.0mm Zinc-coated steel

Cooling

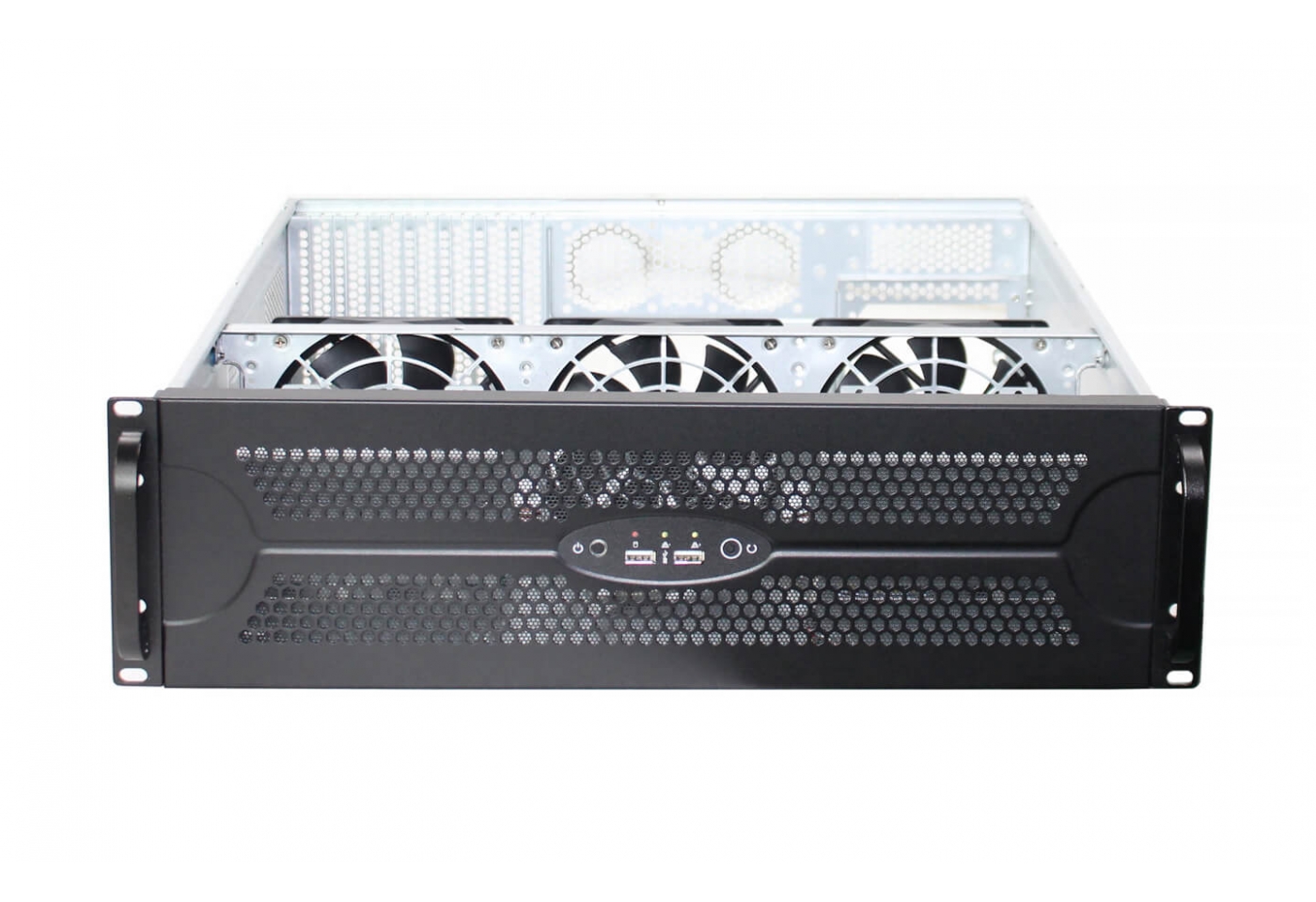

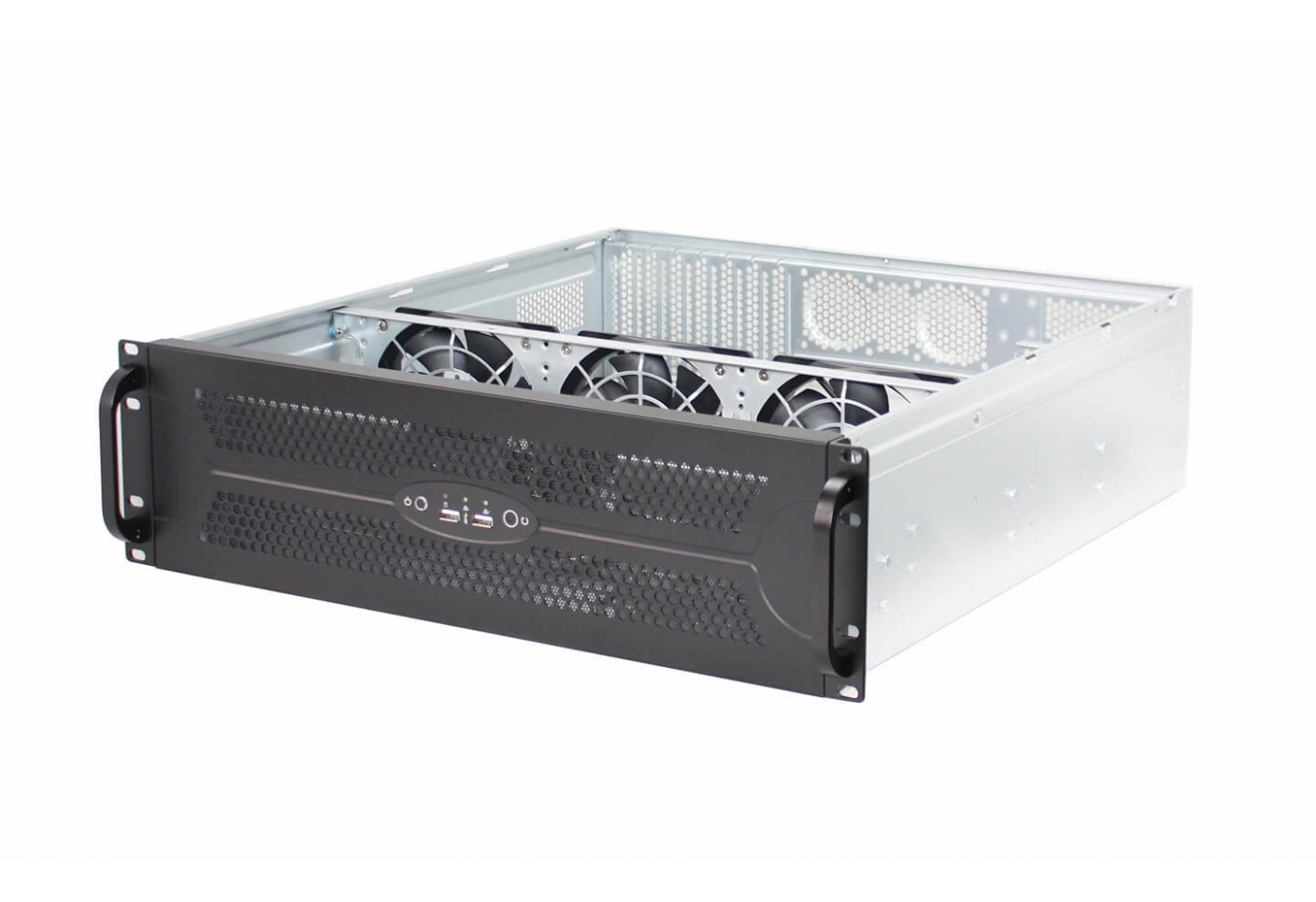

3 x 12025Smm fans (Middle)

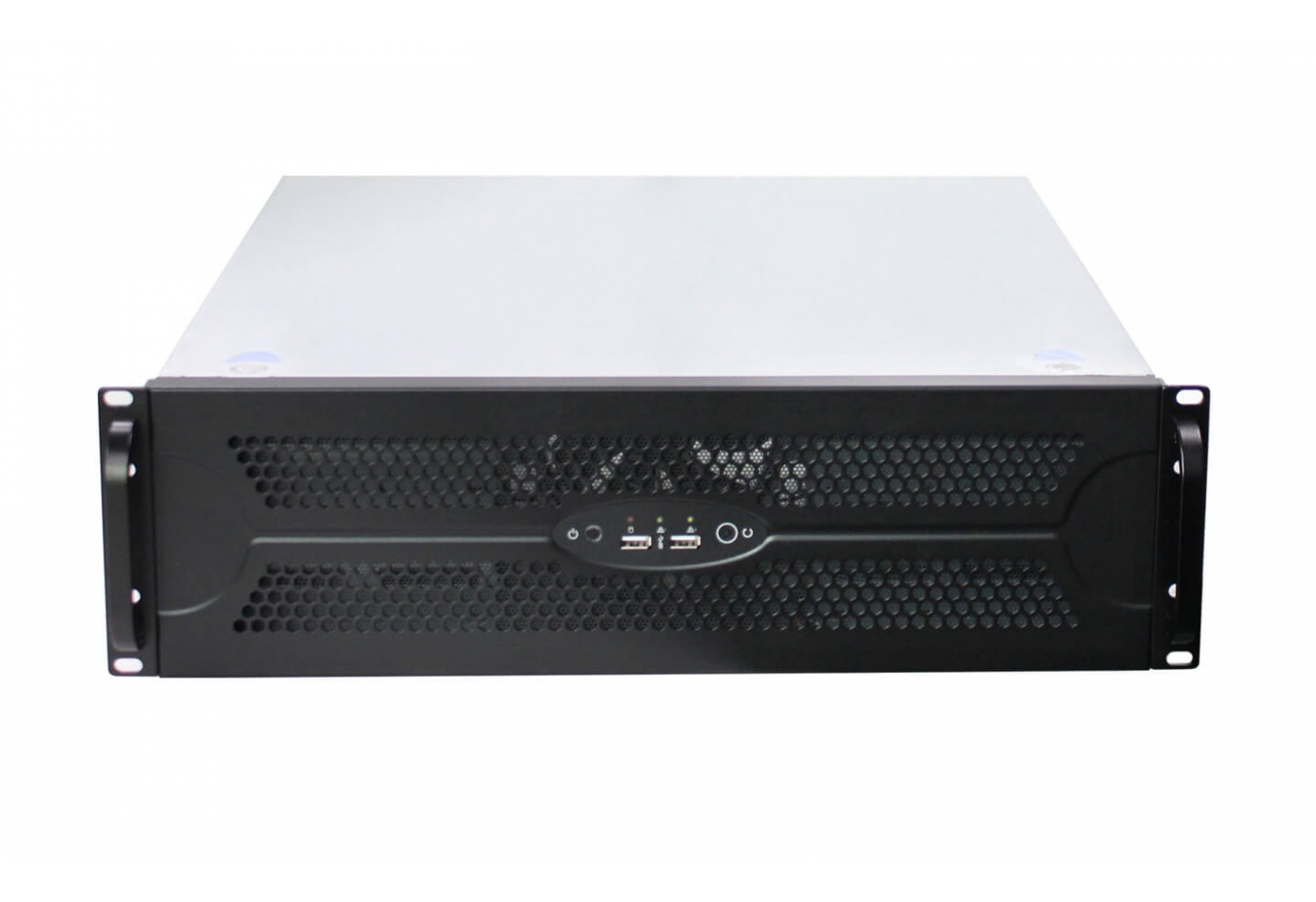

Front Panel
Controller

1x Power, 1x Reset,
2x USB2.0

LED Indicators

1x Power Led, 1x HDD Led  ，2x NIC Leds

Drive Bays

External: N/A

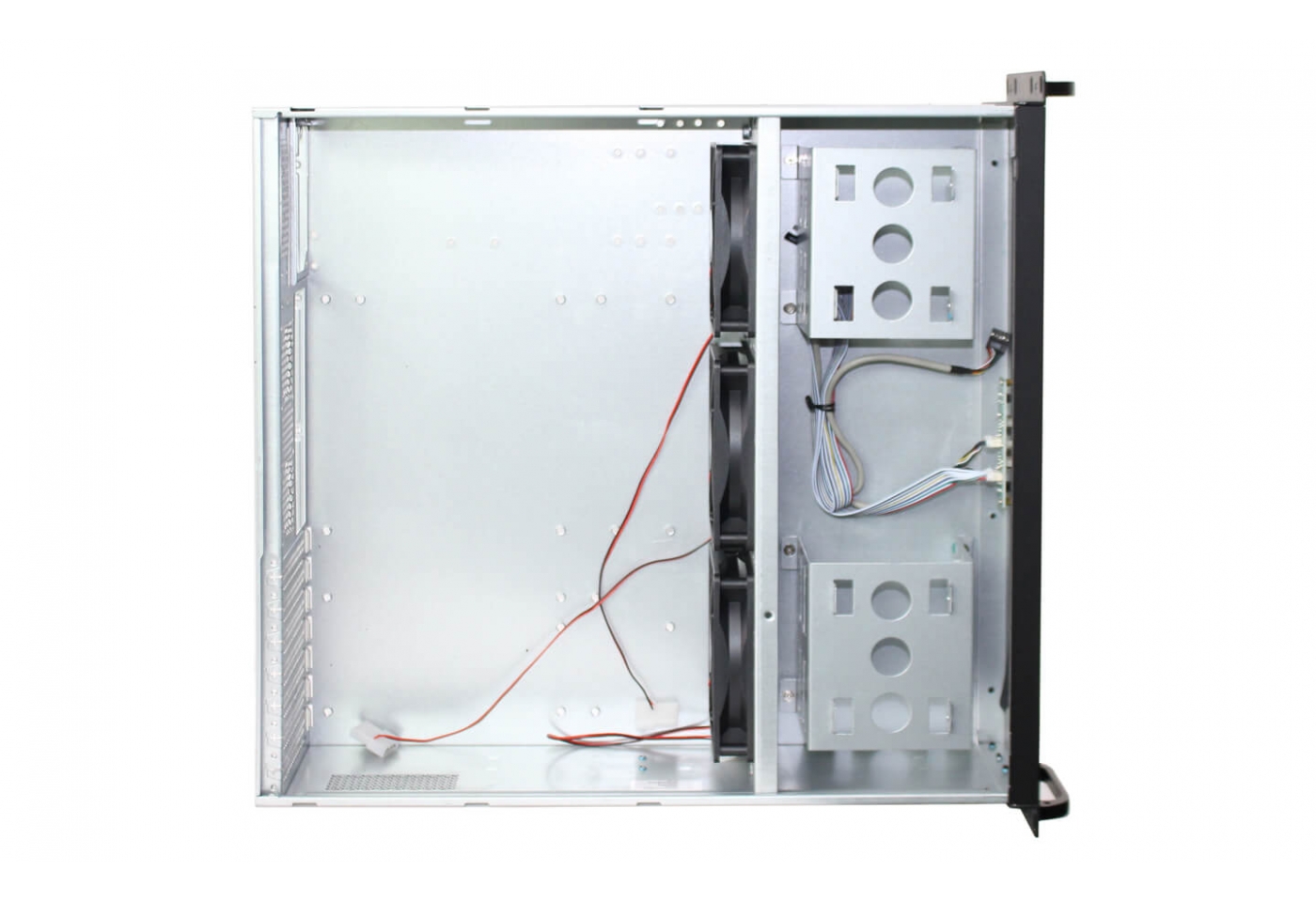

Internal: 6*3.5”,2*2.5” Bays

Color

Front- Coated in Black;
OEM etc.

System Board

12”*9.6”(ATX), 9.6”*9.6”(m-ATX), 17*17cm(ITX)

Expansion Slots

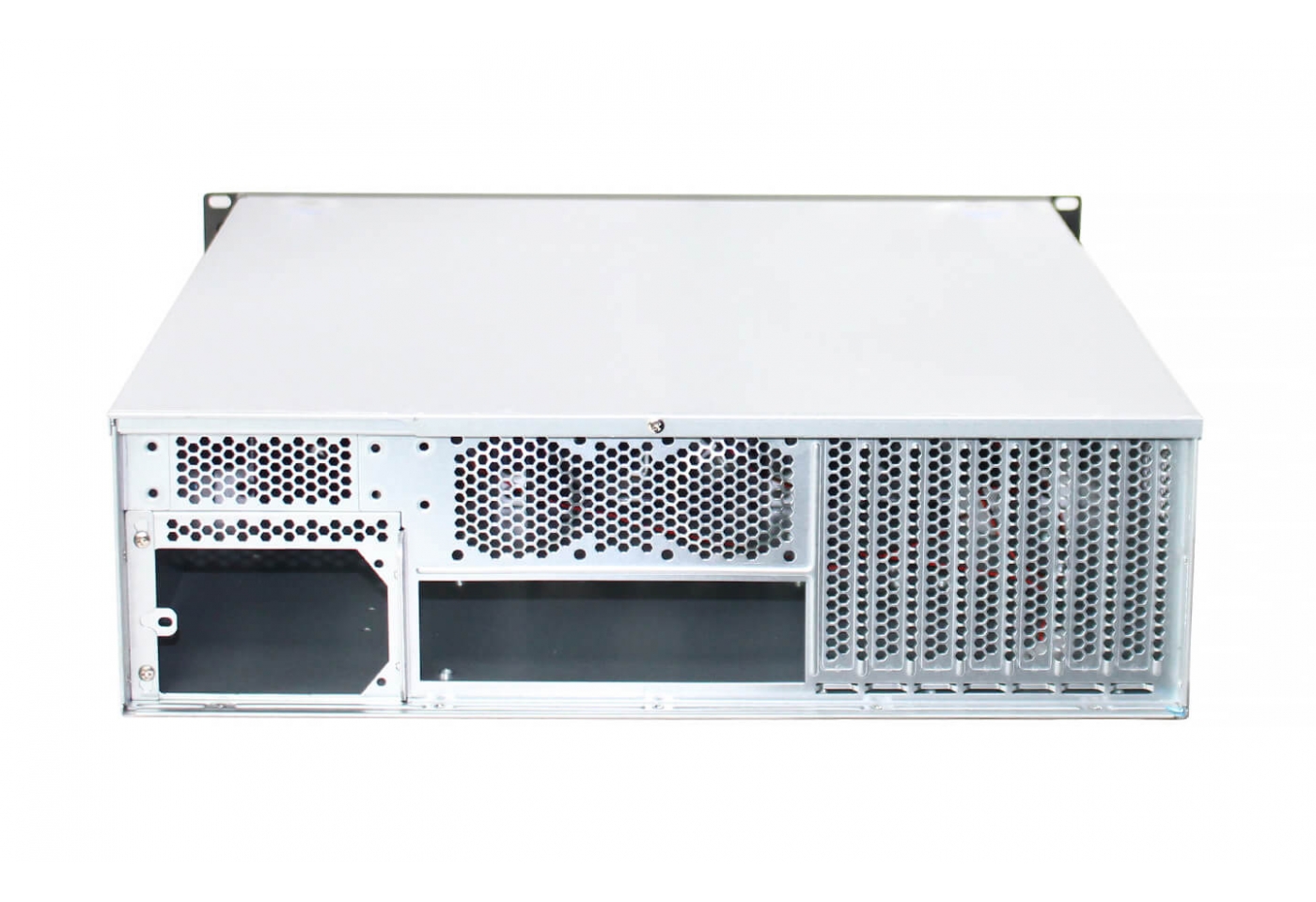

7* Full Height Profile Slot

Power Supply

2U Single 600W/ 850W ,
2U Dual CRPS 550W~1300W.

Package Dimension

605*560*240mm K636K,

Net Weight

7.5Kg

Gross Weight

9.2Kg

Customized

Available

Order Code

M/B

HDD Backplane

PSU

Rear Window

Slide Rail

CS36516M6

12"x13"

16-Bay 2.5"/3.5",6GB mini SAS

Option 600W/750 2U single

650W/800 2U Redundant

7-Slot,FF

Option

CS36516E6

12"x13"

16-Bay 2.5"/3.5", 6GB mini SAS Expander

Option 600W/750 2U single

650W/800 2U Redundant

7-Slot,FF

Option

CS36516G12

12"x13"

16-Bay 2.5"/3.5",12GB mini SAS HD SGPIO

Option 600W/750 2U single

650W/800 2U Redundant

7-Slot,FF

Option

CS36512M6

12"x13"

12-Bay 2.5"/3.5",6GB mini SAS

Option 500W/600 2U single

650W/800 2U Redundant

7-Slot,FF

Option
