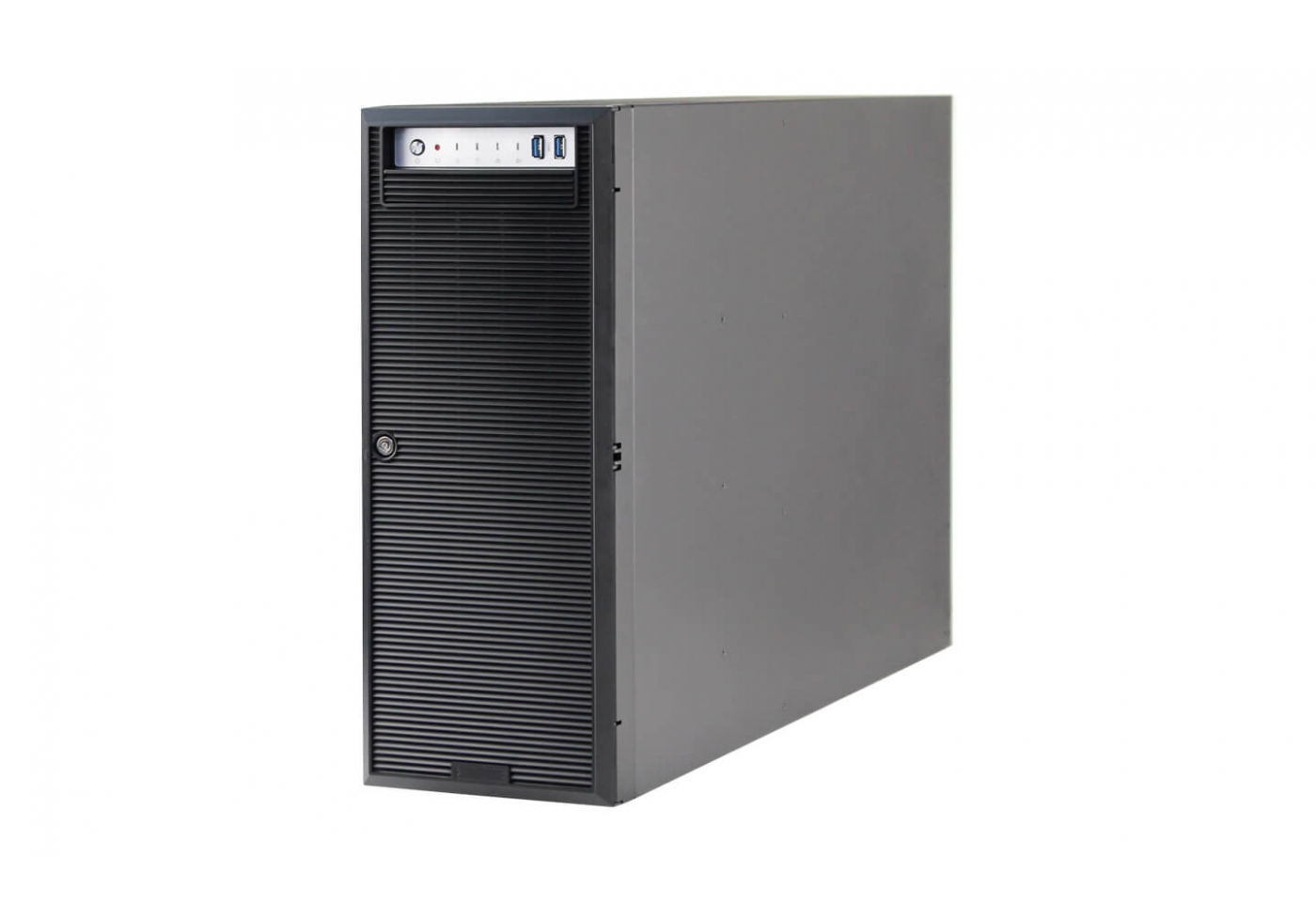

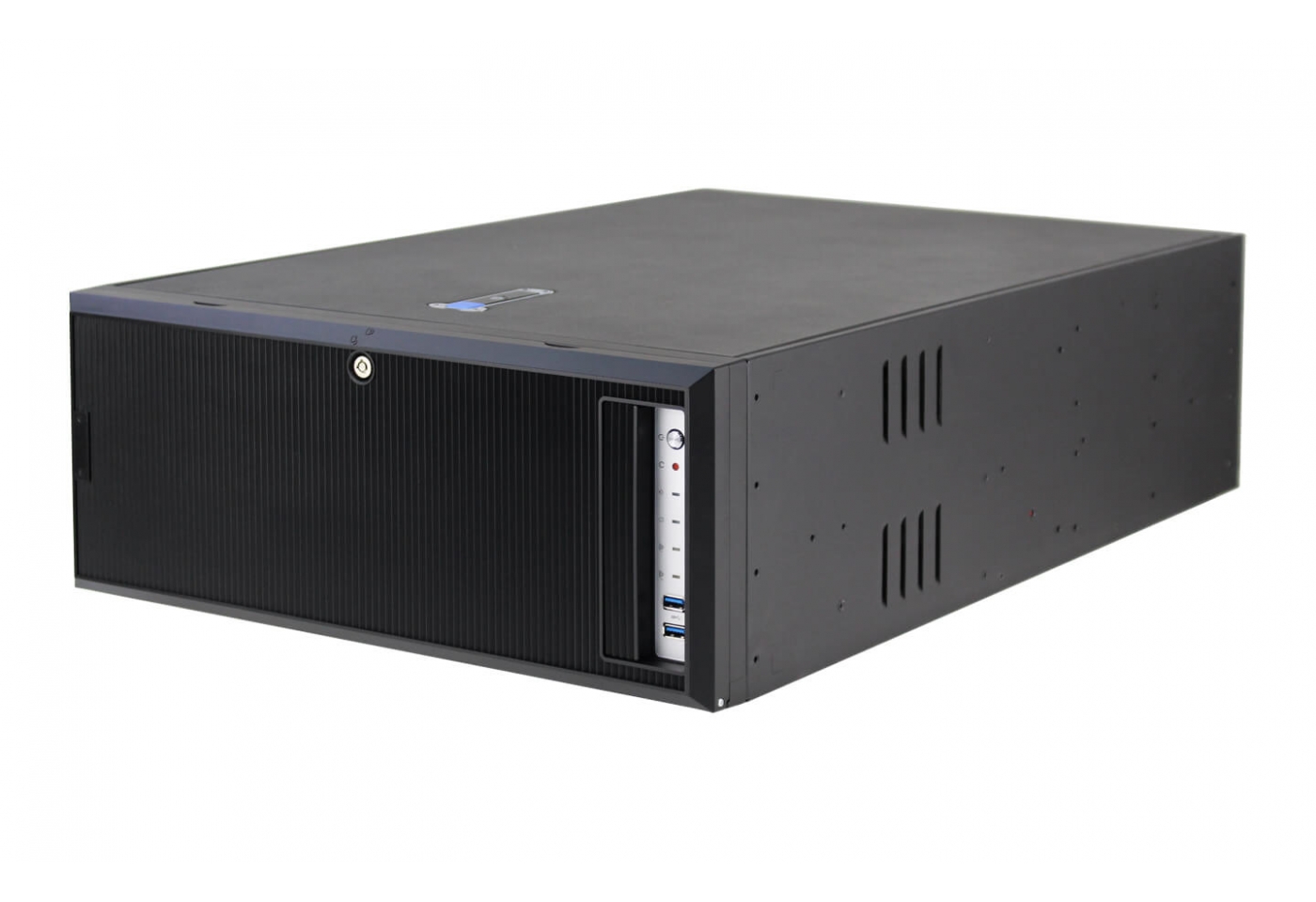

Form Factor

Workstation,Tower&Rackmount Chassis

M/B Form Factor

Motherboard MAX 12"x13".

Dimensions (Dx Wx H)

650 x 437.5 x 176.5(mm)
25.56" x 17.2" x 7"

Material

High quality Anti-finger 1.0 mm SGCC& Super ABS ROSHs

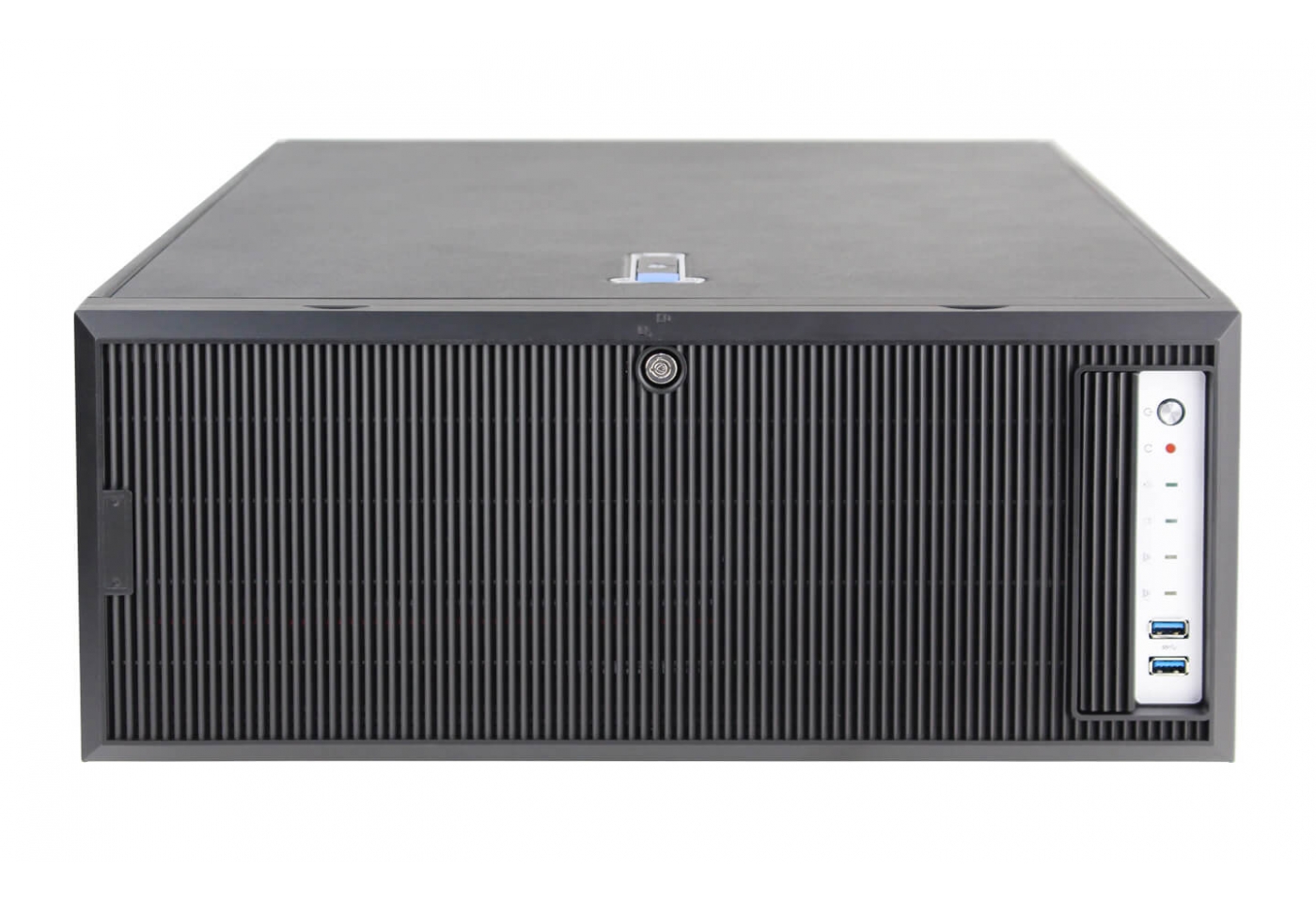

Front Control

1x Power On/Off, 1x System Reset, 2 x USB 3.0

Indicators

1x Power Status, 2x LAN Activity, 1x HDD Status

Hotswap Backplane

1)6GB SATA Hot-swap Backplane (Default)

2)12GB Mini SAS HD SGPIO Hot-swap Backplane（option）

3)Nvme Hot-swap Backplane,support SATA/SAS/Nvme（option）

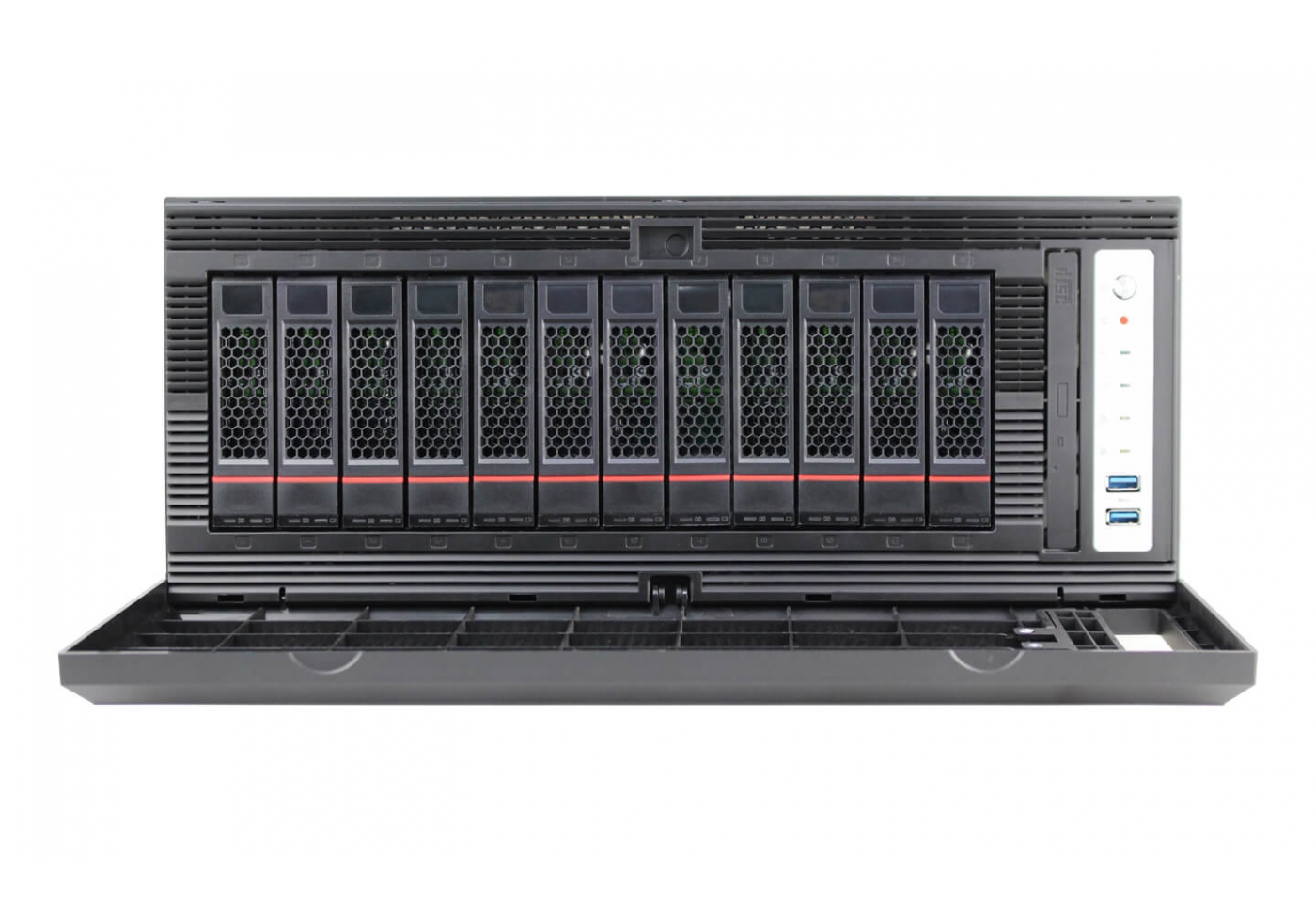

Drive Bays

External 3.5"/ 2.5"：12（Hotswap,SATA/SAS/Nvme,Nvme optional）
Internal 3.5"：N/A （/2*2.5" SSD hotswap HDD Trays Rear optional）

Slim DVD-ROM：1

Cooling Fans

Default 3x 120mm(T=38mm), PWM （Middle）Dual-Balling Fans
Option2*80mm(T=38mm), PWM（Rear）

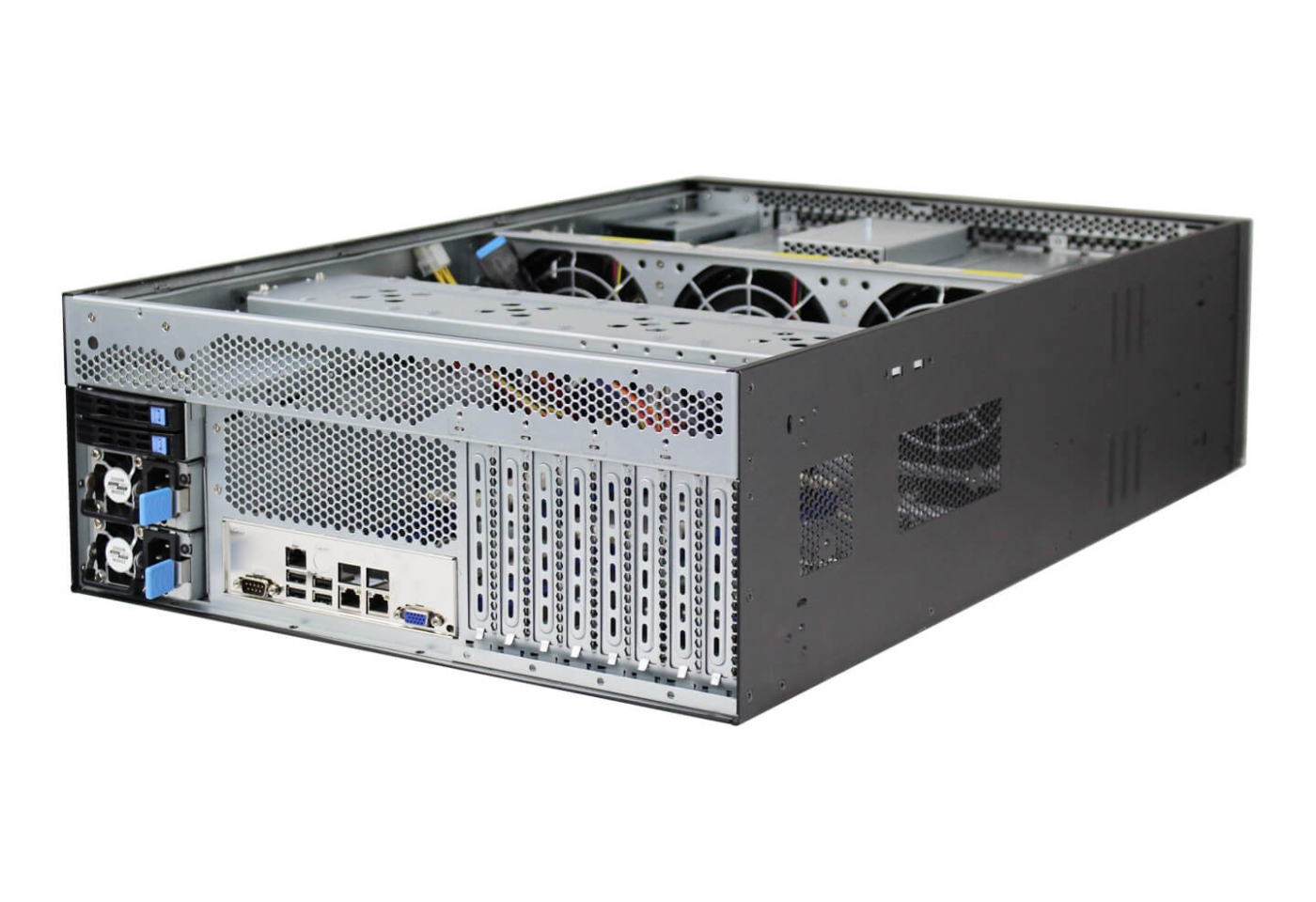

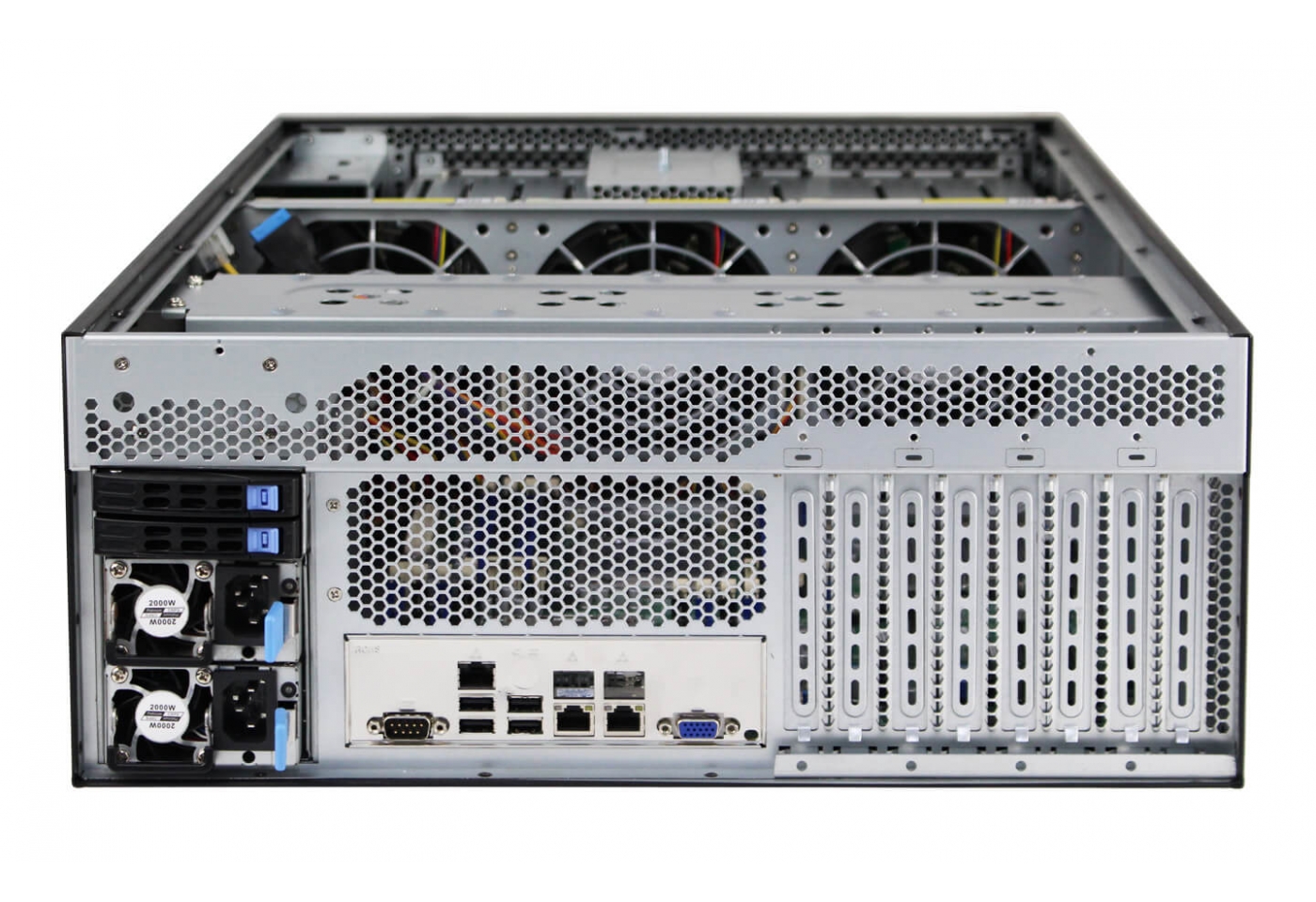

Expansion Slots

8x Full Height

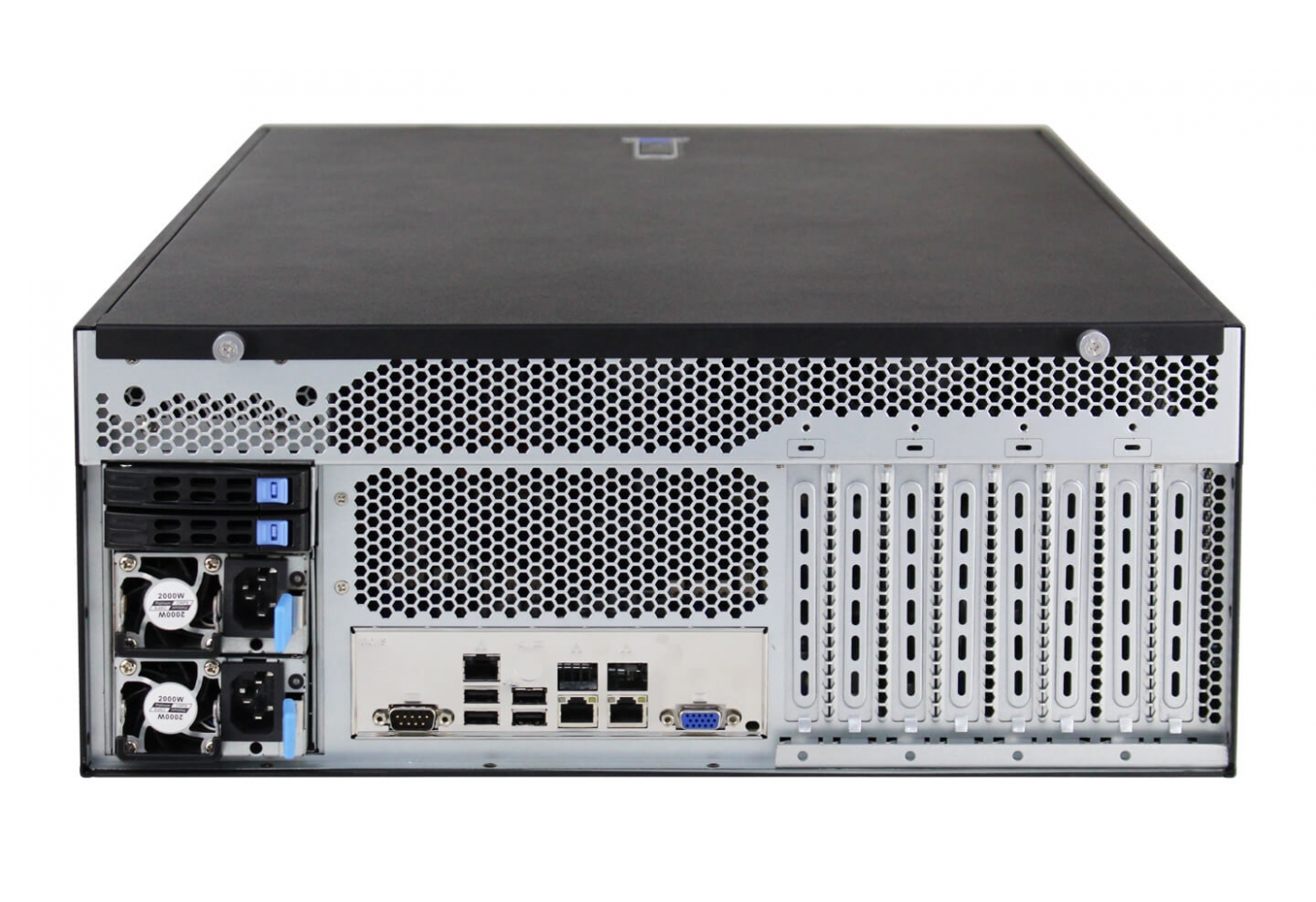

PSU Form Factor

Option ATX / CRPS 80Plus Platinum Redundant power supply.
850w,1300W,1600W,2000W etc.

Color

Coated Black (Others customized)

Application

Cloud Storage, Cloud Computer, Huge Storage,Datacenters, Hybird GPU Computing etc.

Net Weight

21.15Kg

Gross Weight

23.50Kgs

Unit Carton Size

Customized

Available
